V90 Galaxy

Product Feature Technical Specification Design Related Project

Product Feature

Cabin Lift

Space saving – the smallest size is less than 1 meter square

70% of the footprint is passenger space.

```
Machine roomless and no pit needed
```
```
Can work with single phase electricity
```
```
Can be installed in just 10 - 14 days
```

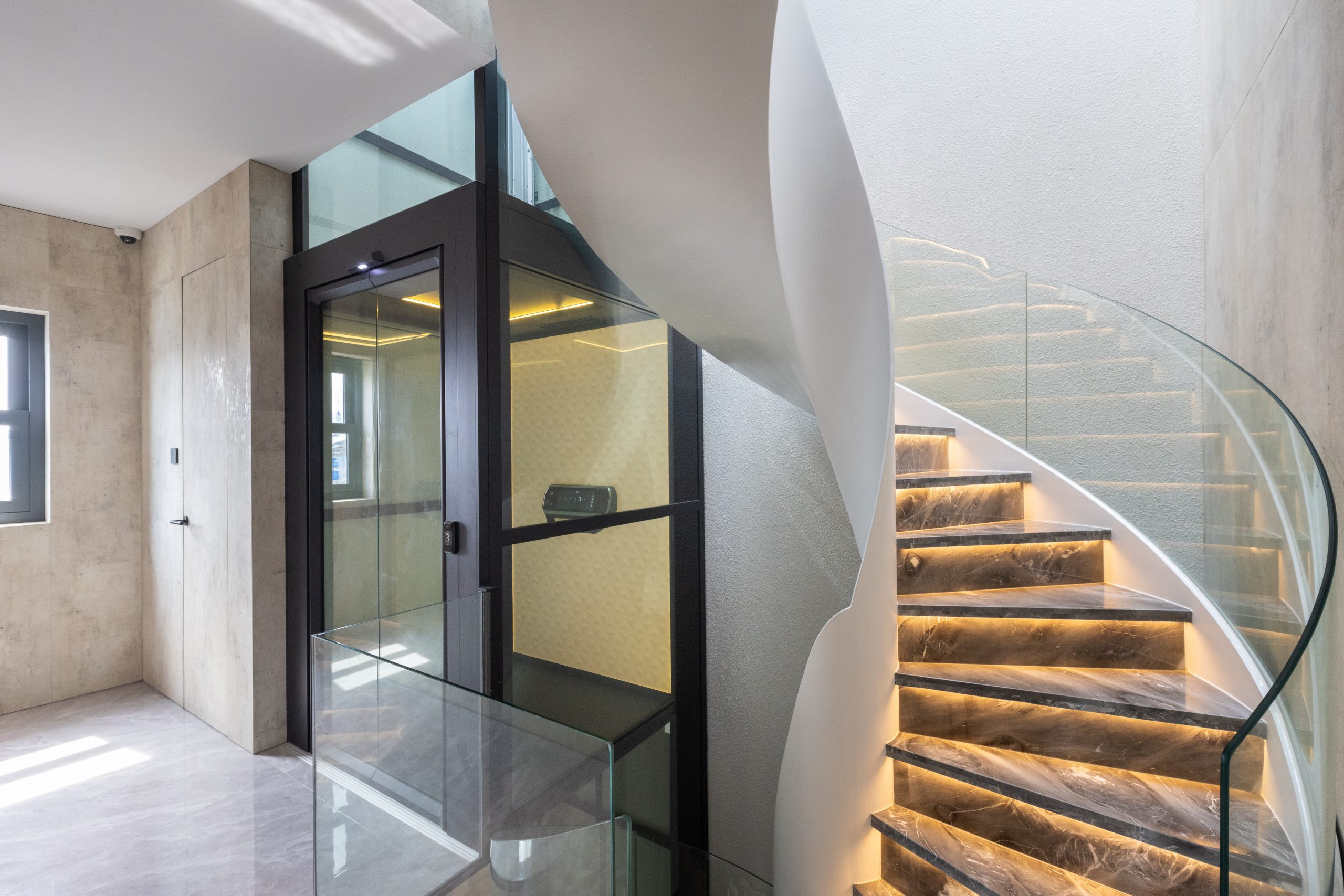

Paronamic Glass shaft lift with premium matte powder coating

Slate Textured Anti-slip Flooring from Forbo

Six beautiful acrylic patterns with custom lighting technology

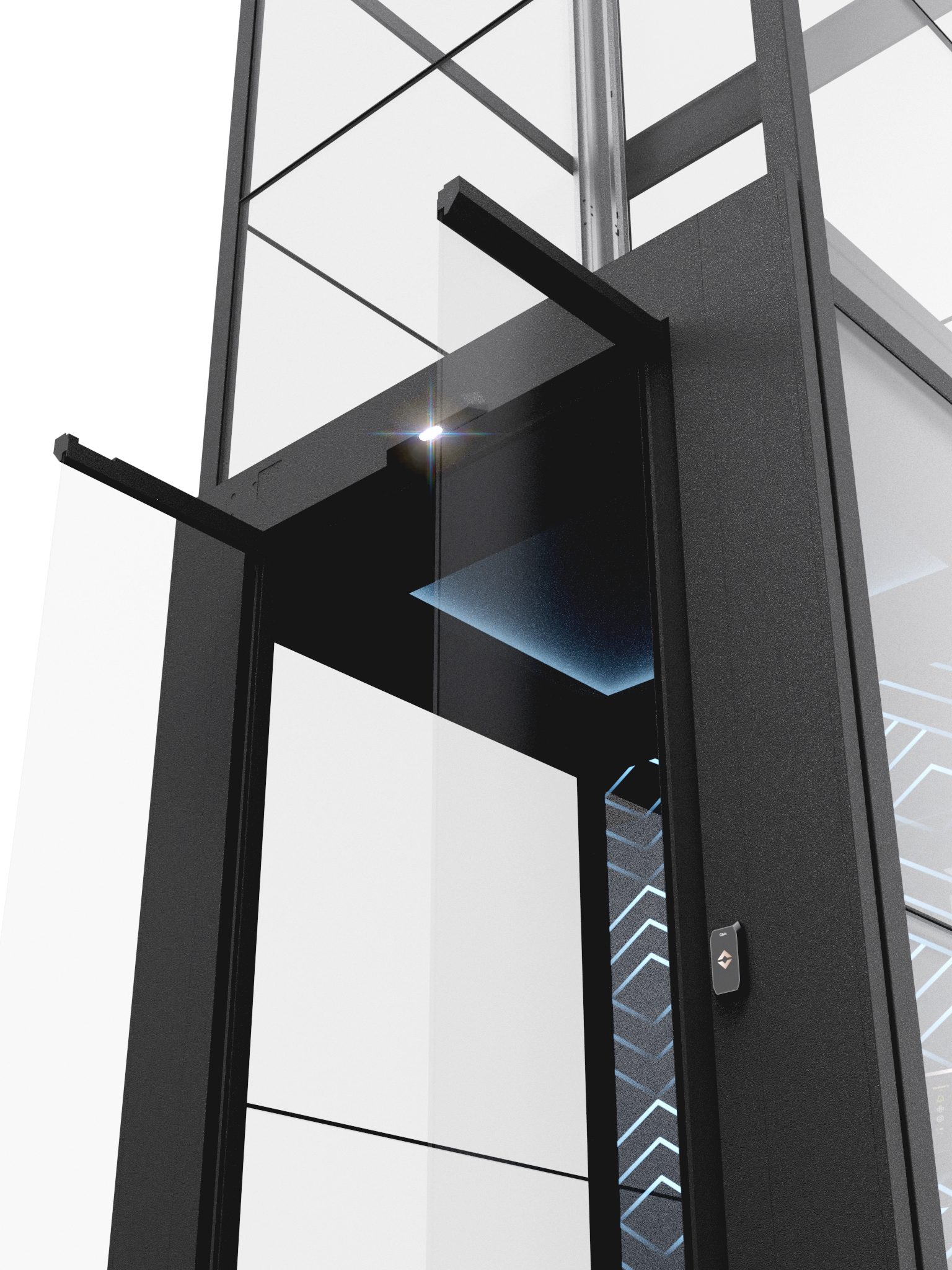

Ultra space-saving automatic saloon doors

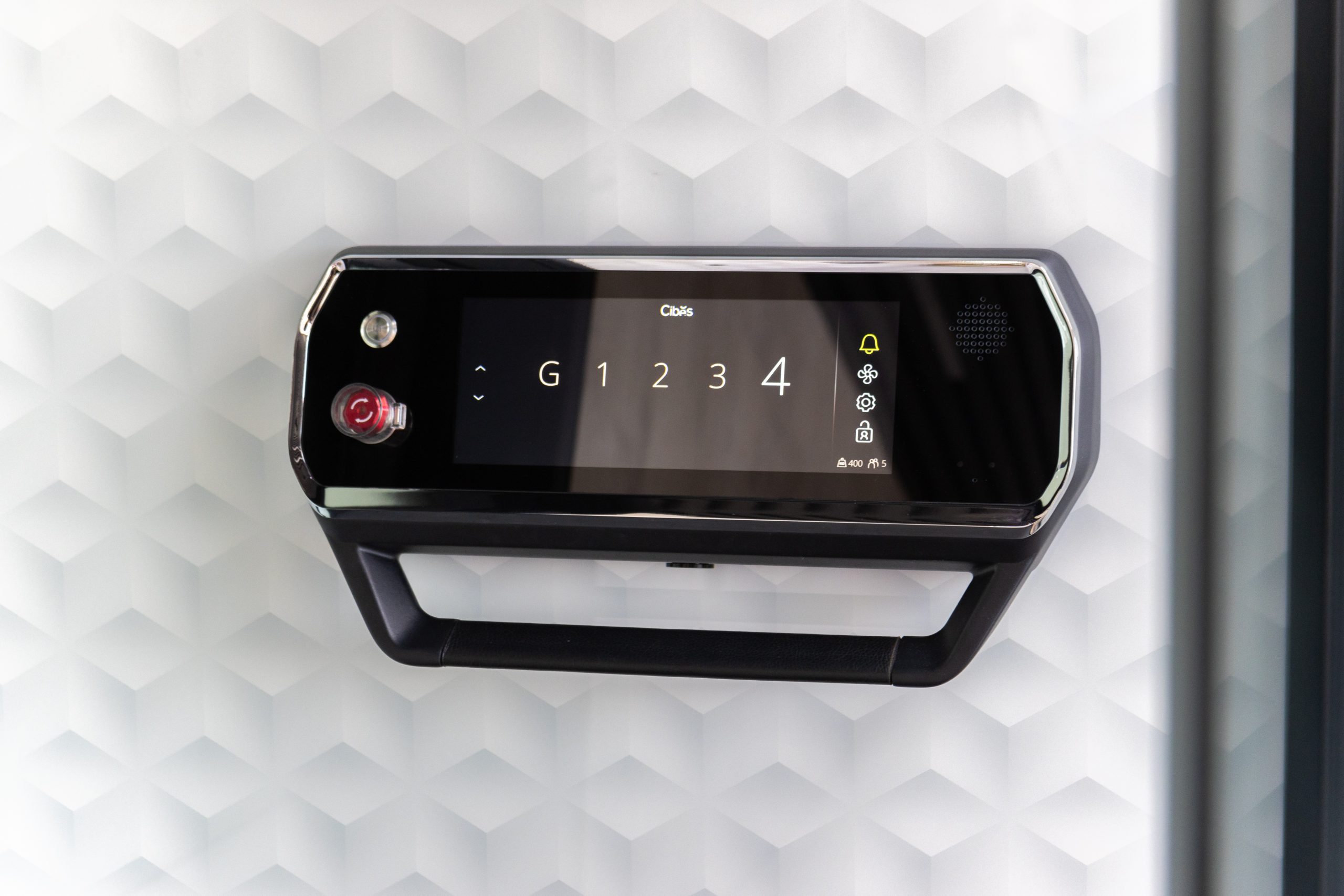

Full Touch LCD Screen, Touch call button

Smart control panel with multiple functions

Play

Technical Specification

Specifications and model details

```
Installation location: Indoor/Outdoor
```
```
Load capacity: 400kg
```
```
Maximum number of stops: 8
```
```
Maximum speed (m/s): 0.15 - 0.25 m/s
```
```
Travel height: 20m
```
```
Min head room: 2500mm
```
```
Pit depth: 0mm/120mm
```
```
Machine room:Integrated (MRL)
```

Popular Sizes

Dimension	Platform size (mm)	Cut out size (mm)
1	710x815	1060x960
2	910x1015	1260x1160
3	1010x1215	1360x1360
4	1110x1315	1460x1460
5	1110x1415	1460x1560

Download all sizes specifications

DESIGN

Patterns Flooring Colors Door Type

FOREST PINES

NEON JAZZ

NEBULA

BASILICA LIGHTS

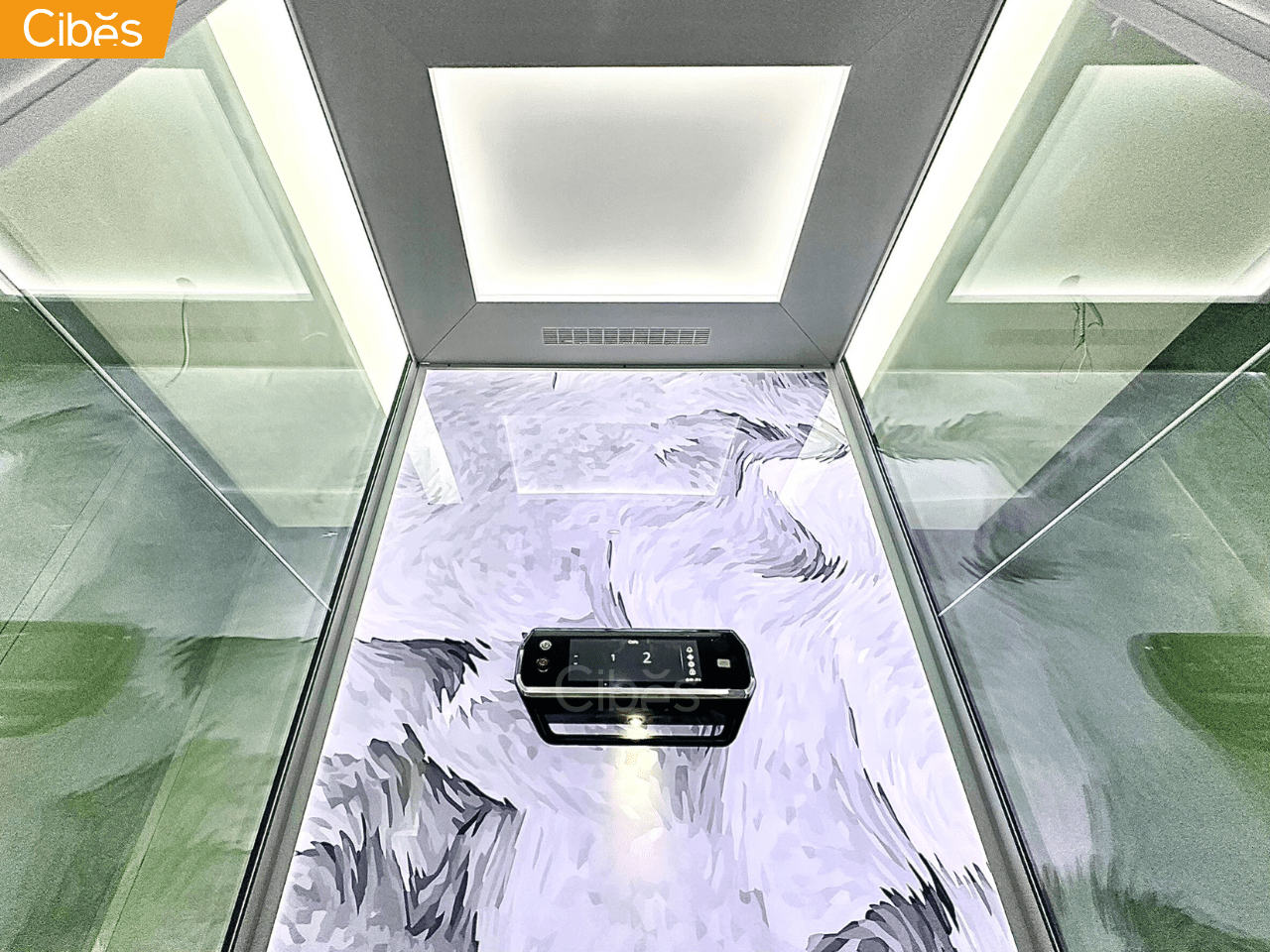

ARTIC ICE

ORIGAMI

WELSH SLATE

NEWFOUNDLAND SLATE

LAKELAND SHALE

February 5

February 6

January 4

Quartz 1

Quartz 2

Saloon Door

Swing Door

Download Voyager V90 Brochure
