Ideal for residential homes, condominiums, and office buildings

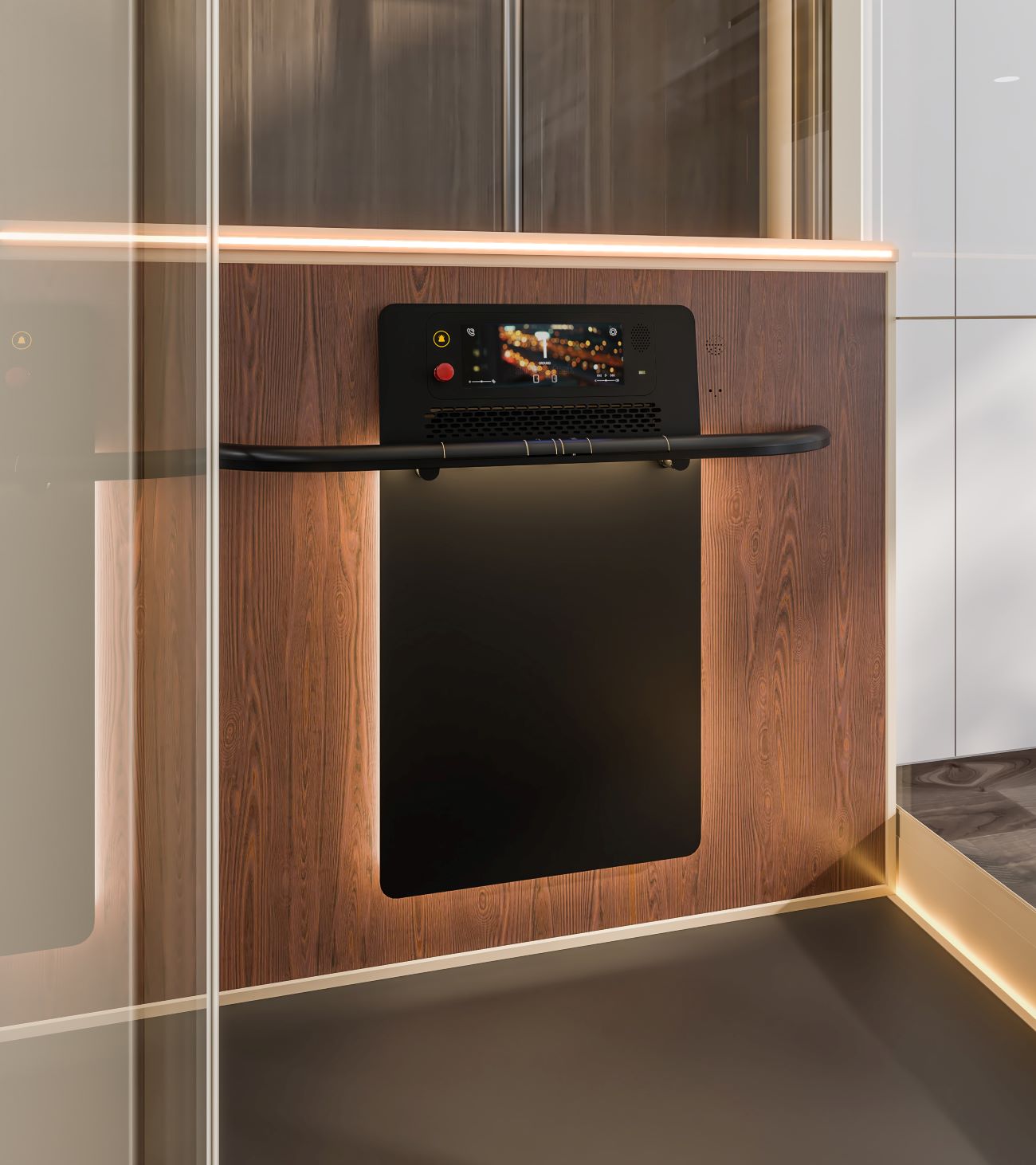

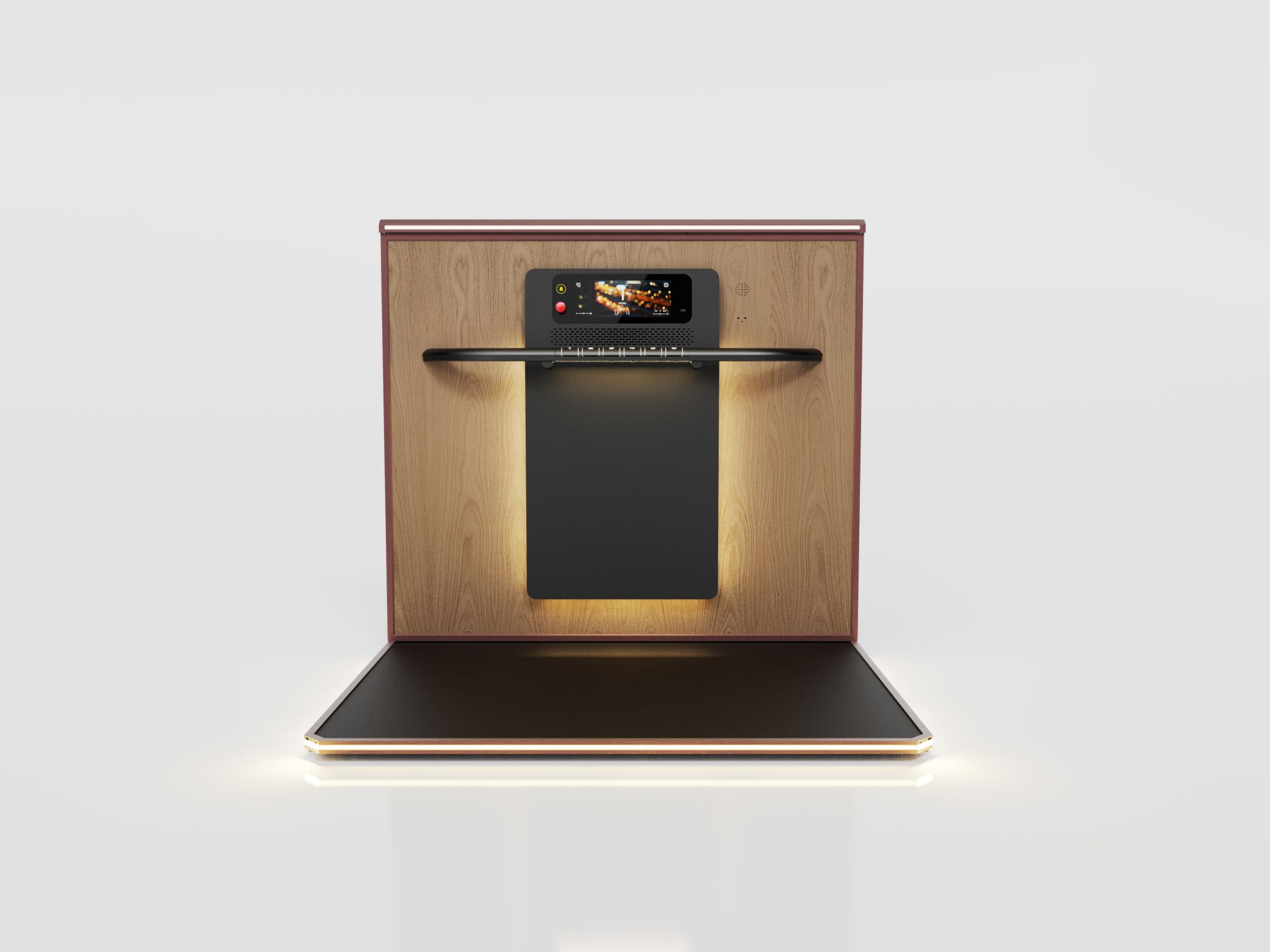

› Natural Oak interior finish: Real wood-inspired oak panels bring warmth and a premium, residential character – setting it apart from conventional metal-based lift interiors.
› Refined lighting concept: Recessed ceiling, guiderail, and platform edge lighting create a bright, elegant, and visually guided lift experience.

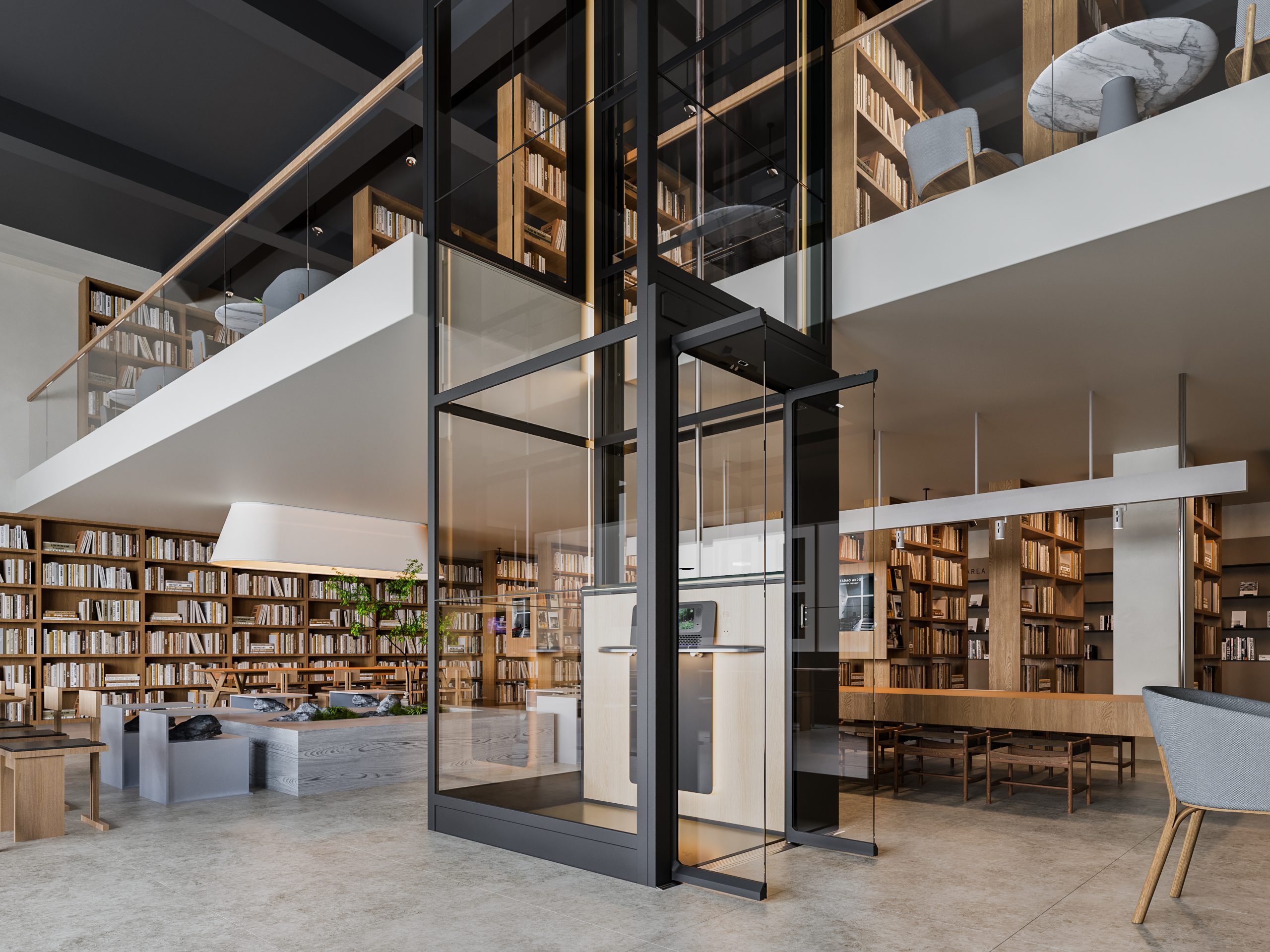

› 1000 mm frameless glass design: Full-height glass shaft sections create a seamless, transparent look with minimal framing, enhancing openness and architectural elegance.
› Customizable light ambiance: Easily adjust color temperature from warm 2700K to crisp 6500K via the control panel.

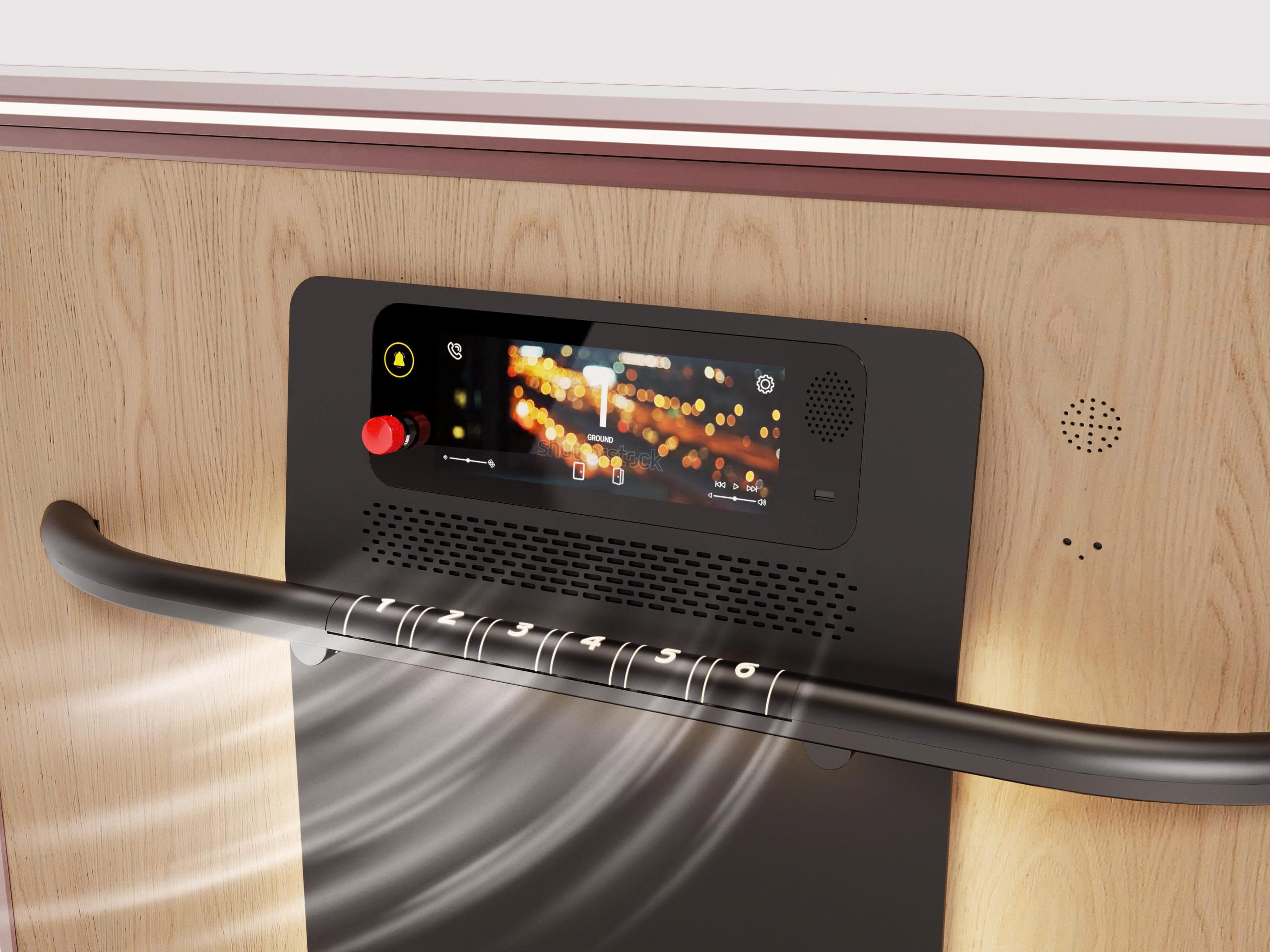

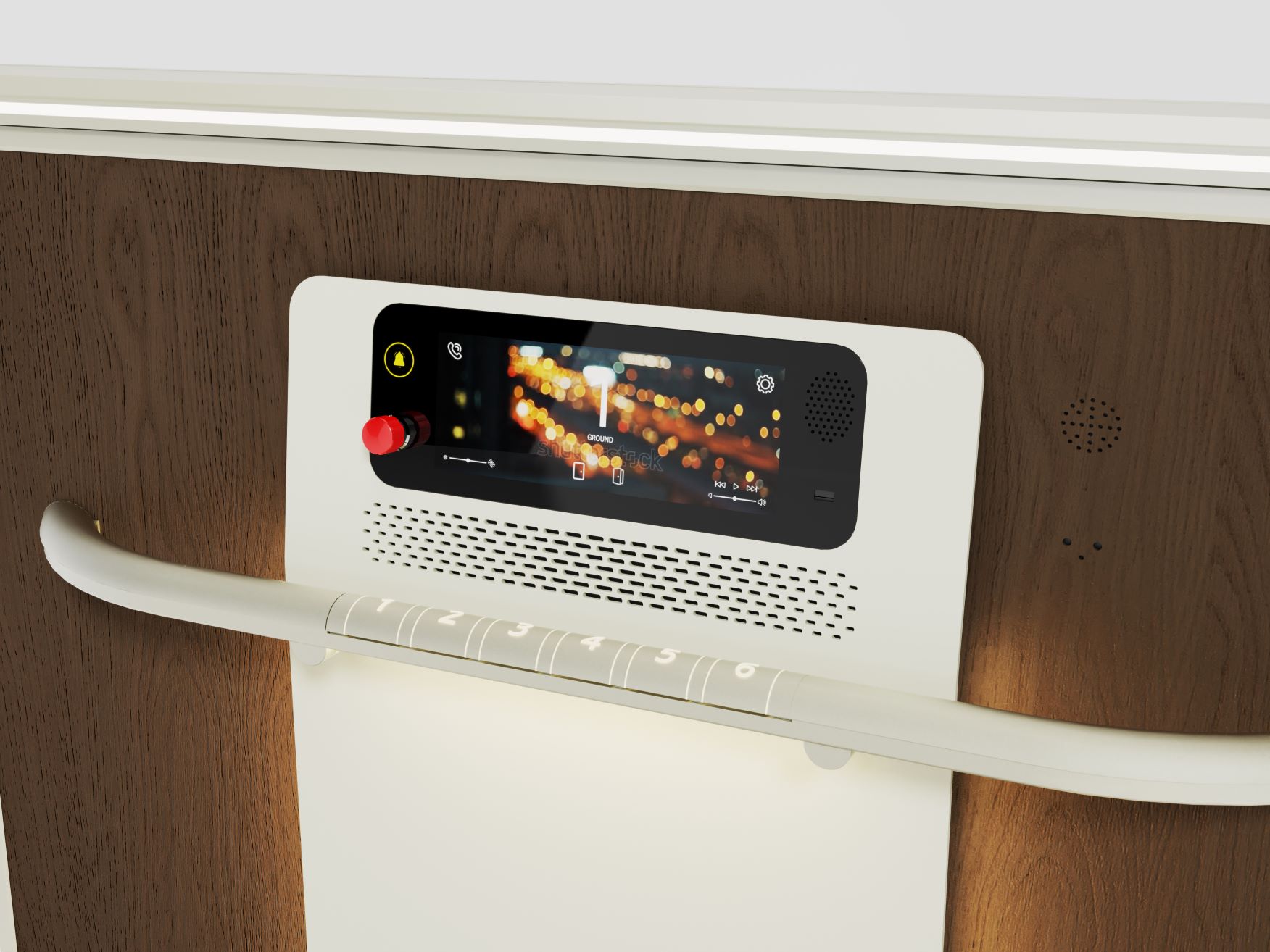

› Comfort & flexibility: Choice of door configurations, ergonomic handrail, ventilation fan, and a modern display with 17 animated themes.
› Quiet, space-efficient technology: Smooth permanent magnet motor with screw-driven design – no pit, no machine room, minimal structural impact.
• Installation Location: Indoor / Outdoor
• Travel Height: 20 meters

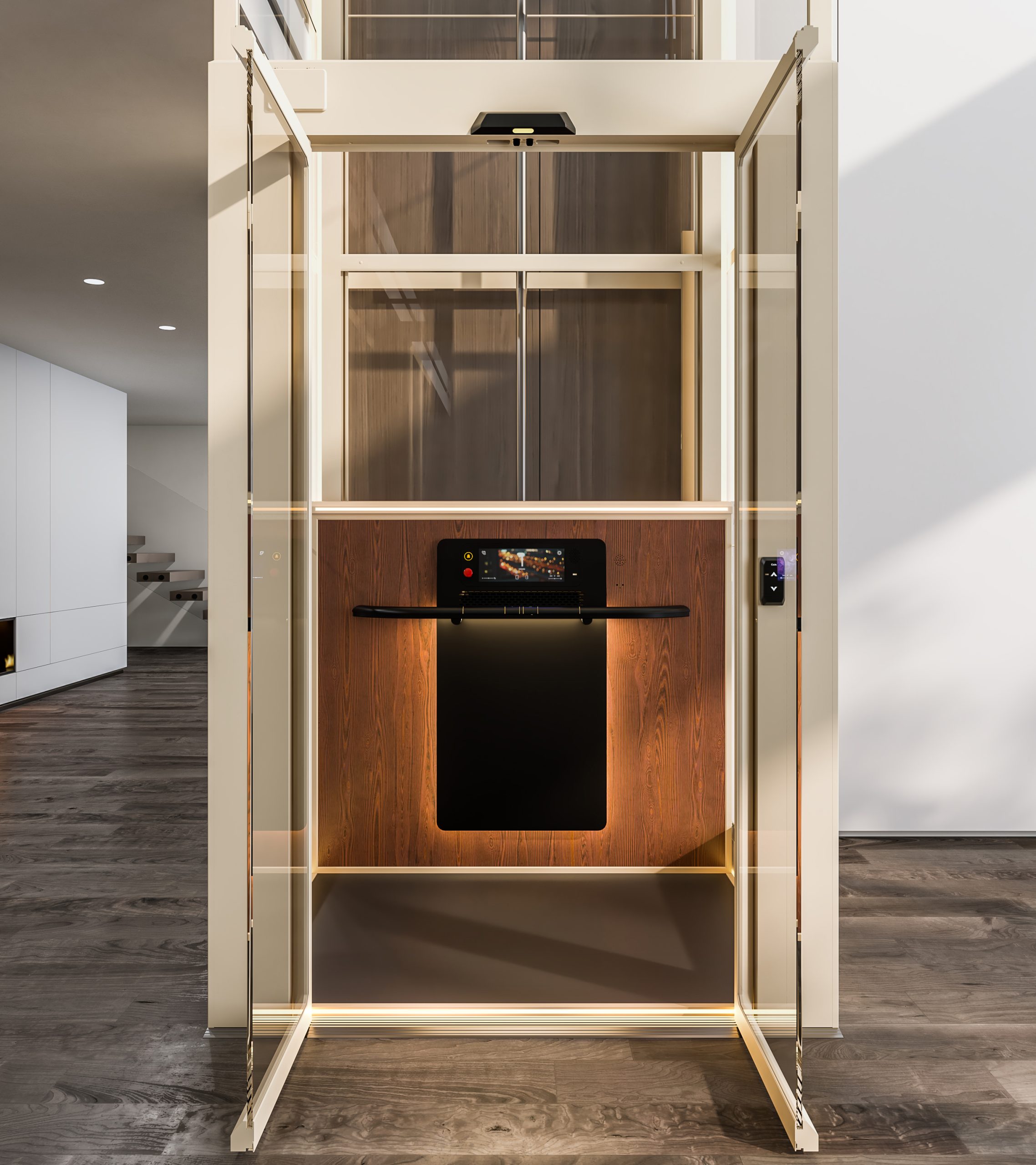

• Door Opening Direction: Single-side / Through-door (opposite sides) / 90-degree corner opening
• Power Supply: Single-phase or three-phase
• Maximum Speed (m/s): 0.15 m/s
• Minimum height top floor: 2350 mm
• Door Type: Swing Door / Saloon Doors
• Motor Power: 2.9 kW
• Load Capacity: 400 kg
• Pit Depth: 0 mm / 70 mm
• Drive System: Screw drive (Ecosilent 2.0)
• Reference Standards: European Standard EN 81-41
• Maximum Number of Stops: 6
• Machine Room: Integrated
Popular Sizes
| Dimention | Platform size (mm) | Cut out size (mm) |
|---|---|---|
| 1 | 635 x 850 | 1060 x 960 |
| 2 | 735 x 850 | 1160 x 960 |
| 3 | 835 x 850 | 1260 x 960 |
| 4 | 935 x 850 | 1360 x 960 |
| 5 | 1035 x 850 | 1460 x 960 |
