Ideal for homes that already have a pre-built lift shaft
› No pit required, or only a shallow pit of 10–12 cm
› No machine room needed and suitable for low headroom spaces
› No risk of hydraulic oil leakage

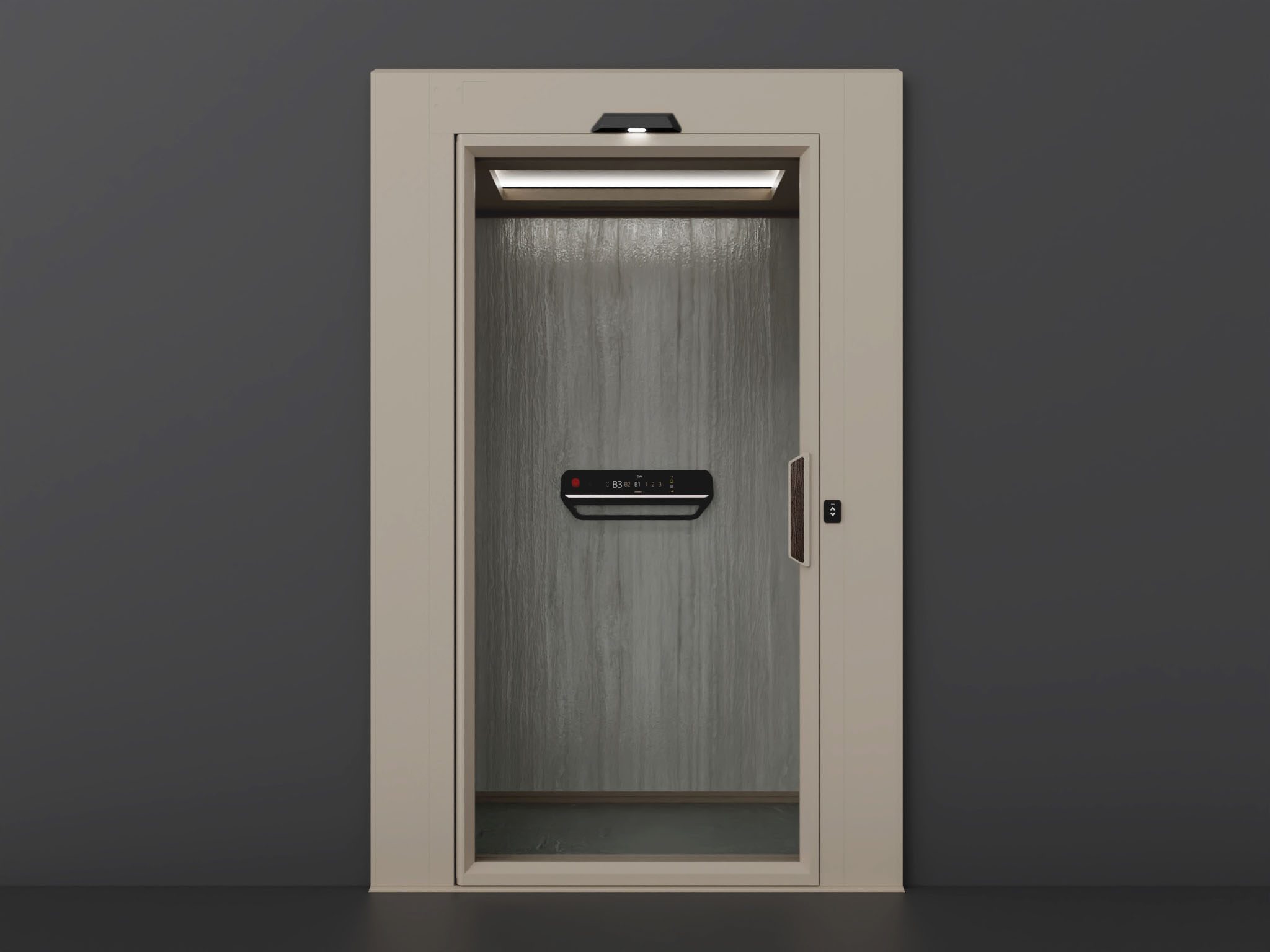

› Elegant four-sided glass design for a bright, spacious look
› Space-saving structure optimized for compact homes
› Compatible with both single-phase and three-phase power
› Energy Class A – highly efficient and eco-friendly operation

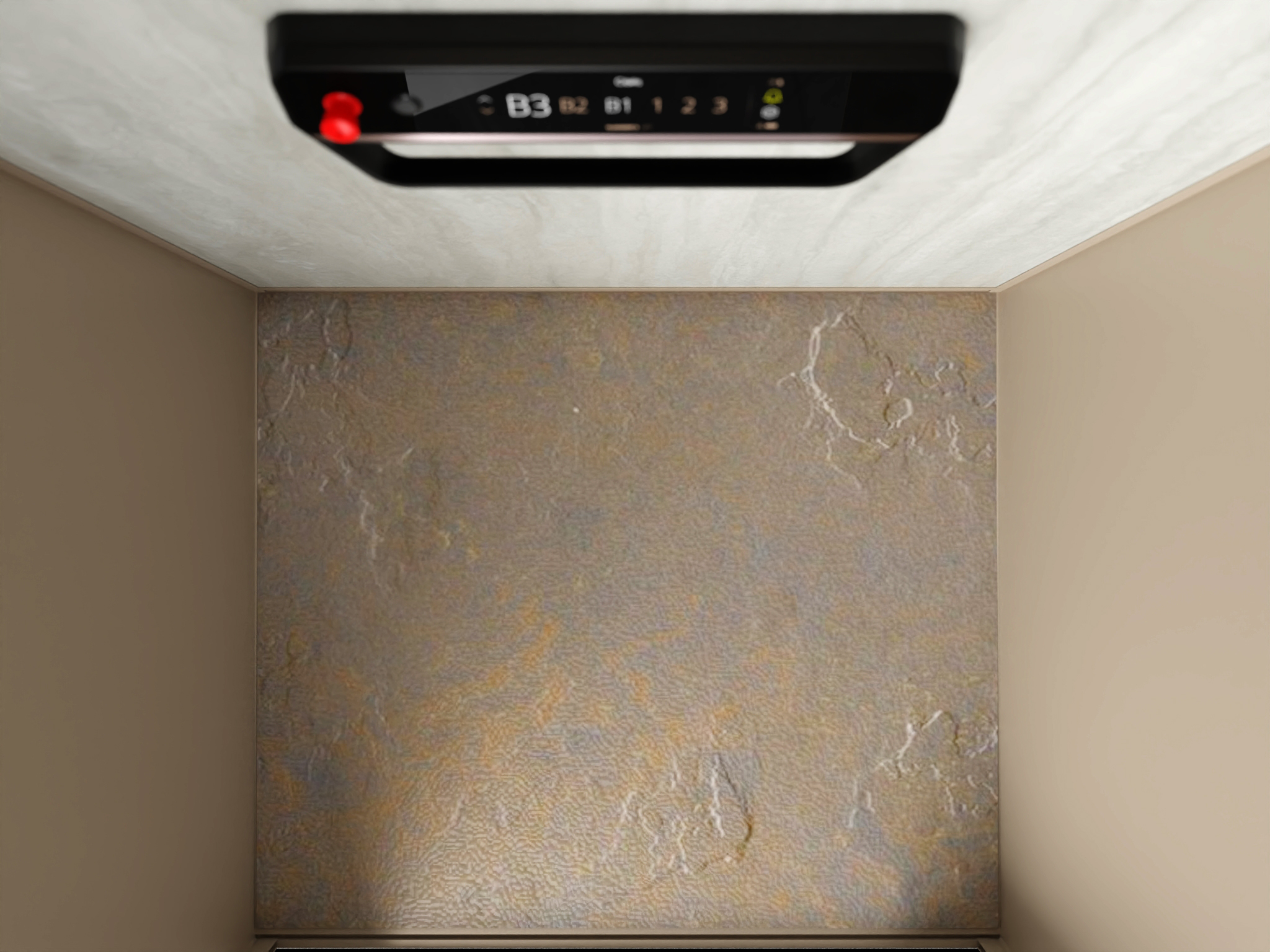

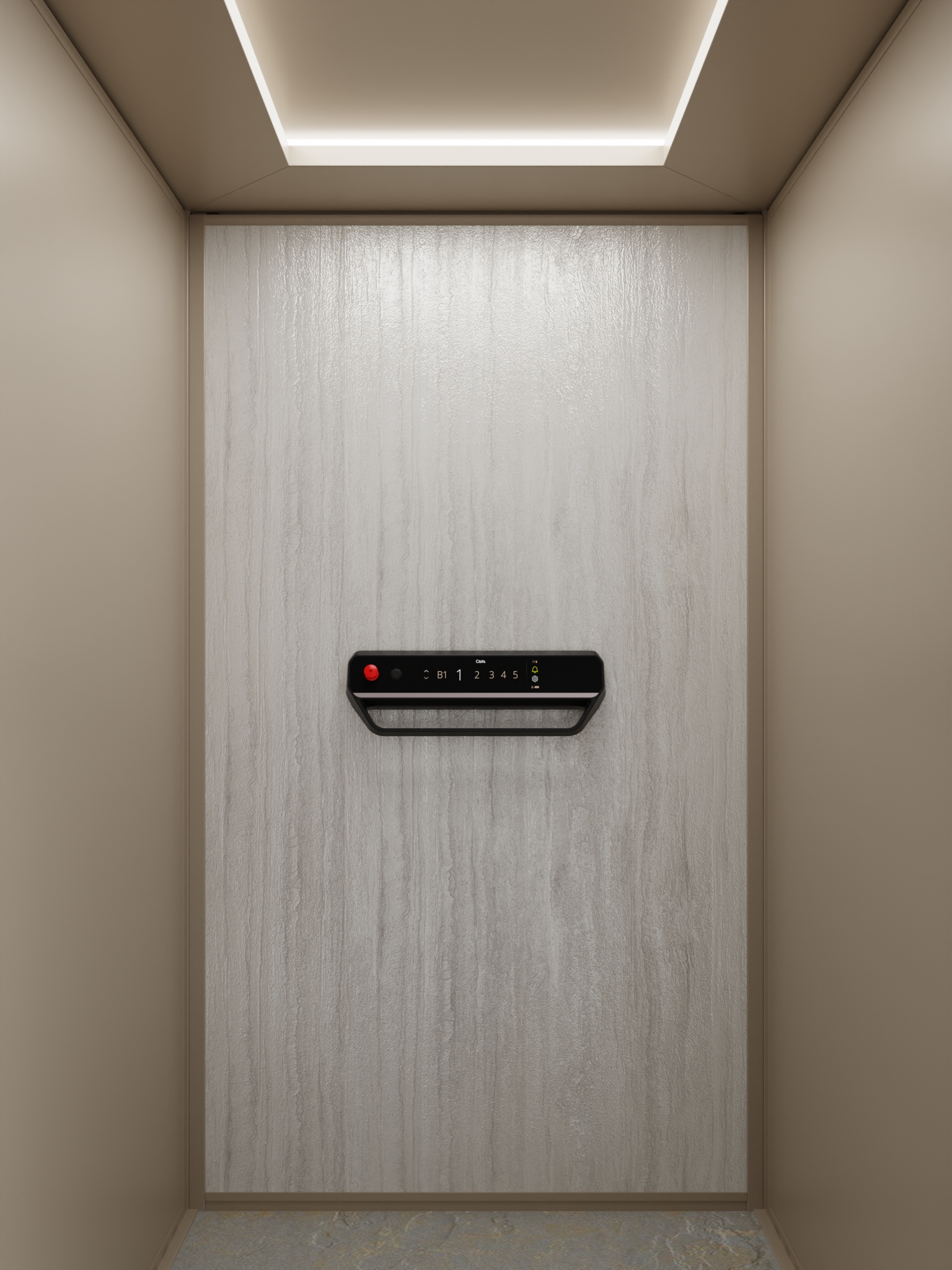

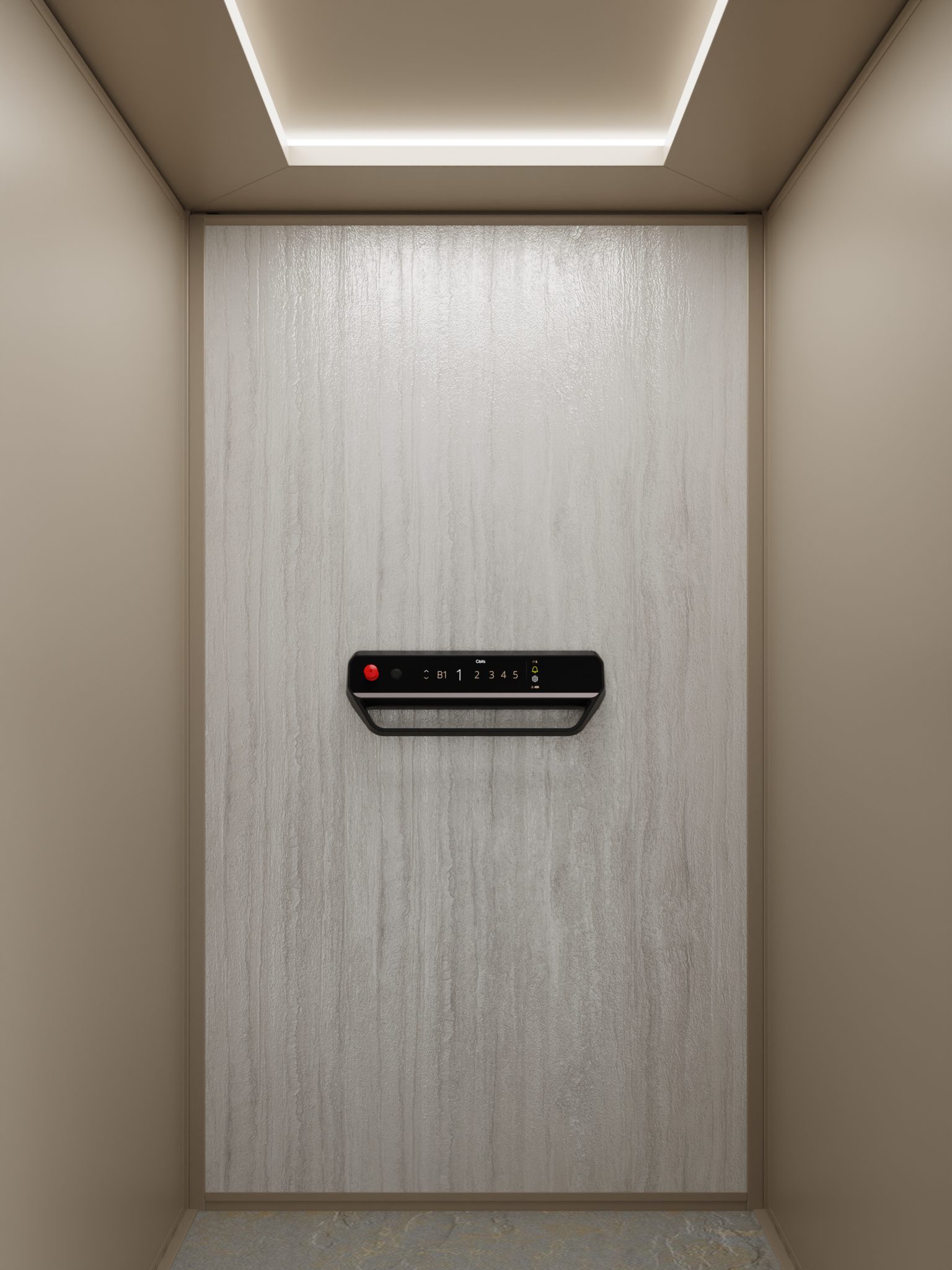

› COP Plus control panel
› Customizable options to fit all types of homes
• Power Supply
Single-phase or three-phase
• Maximum Speed (m/s)
0.25 m/s
• Overhead Clearance
2150 mm – 2500 mm
• Door Type

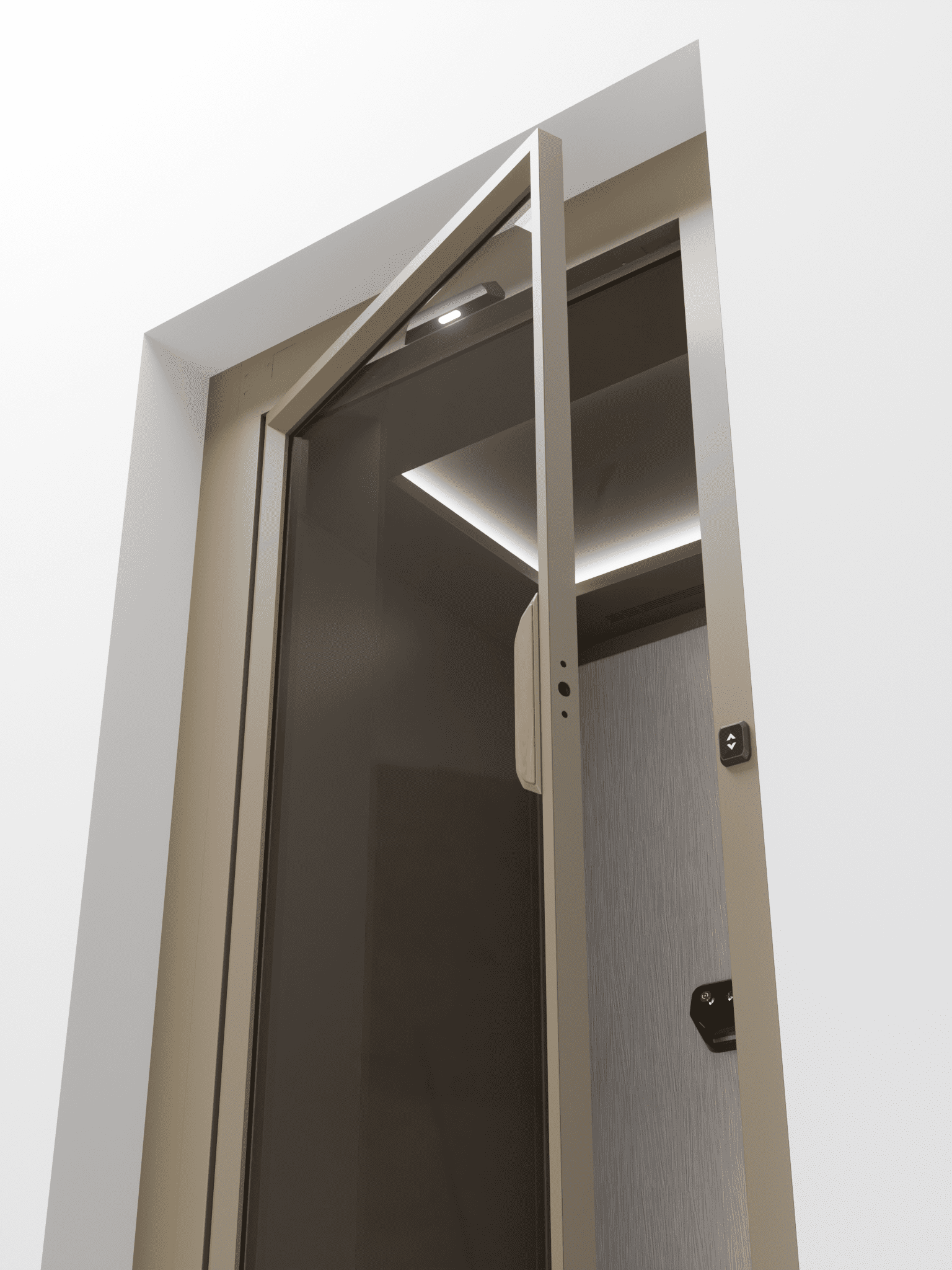

Single large swing door
• Pit Depth
0 mm / 70 mm / 120 mm
• Drive System
Screw drive (Ecosilent 2.0)
• Reference Standards
Machinery Directive 2006/42/EC
European Standard EN 81-41
• Maximum Number of Stops
8

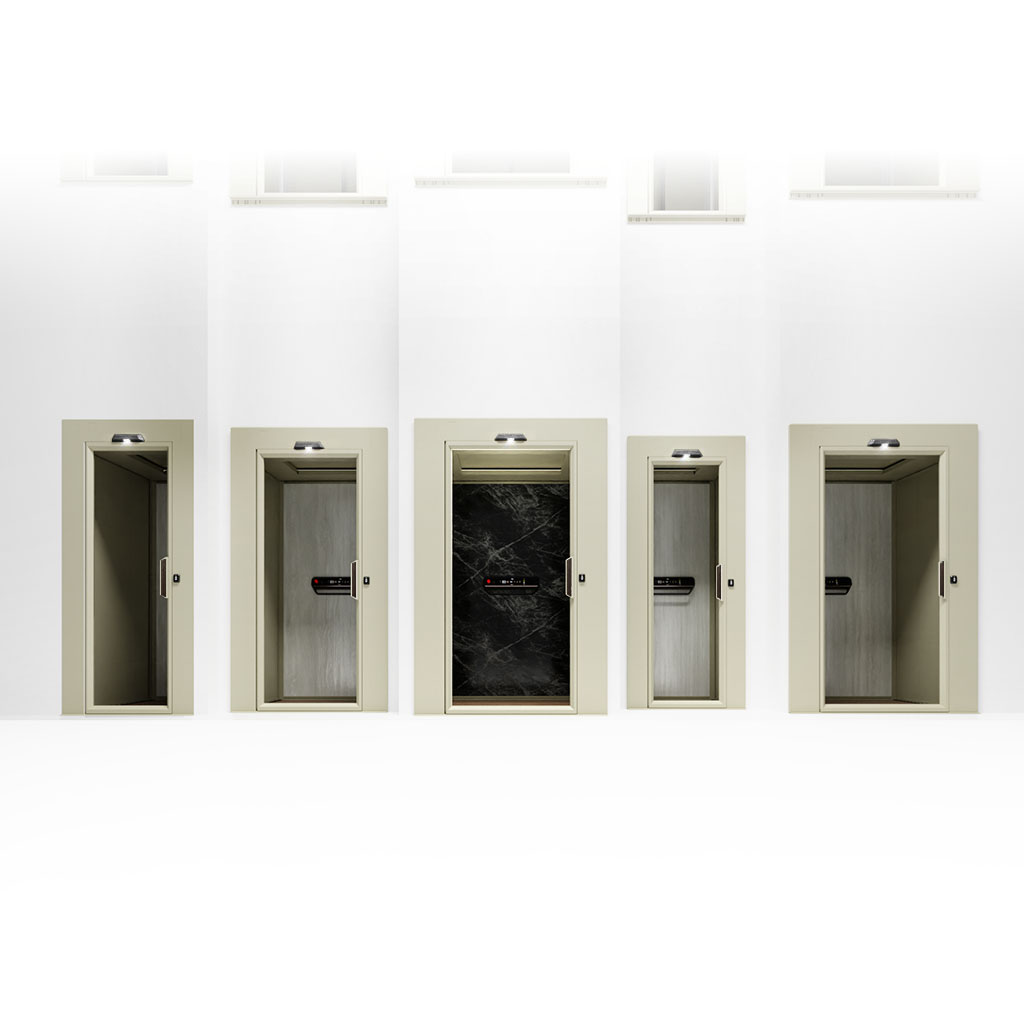

Popular Sizes
| Dimention | Platform size (mm) | Cut out size (mm) |
|---|---|---|
| 1 | 710 x 815 | 1090 x 960 |
| 2 | 810 x 915 | 1190 x 1060 |
| 3 | 910 x 1015 | 1290 x 1160 |
| 4 | 1010 x 1115 | 1390 x 1260 |
| 5 | 1390 x 1260 | 1110 x 1215 |
