V90 Elegance

Product Feature Technical Specification Design Related Project

Product Feature

Cabin Lift

Space saving – the smallest size is less than 1 meter square

```
70% of the footprint is passenger space
```
```
Machine roomless and no pit needed
```

Deluxe and unique design with 17 different patterns

```
Can work with single phase electricity
```
```
Can be installed in just 10 - 14 days
```

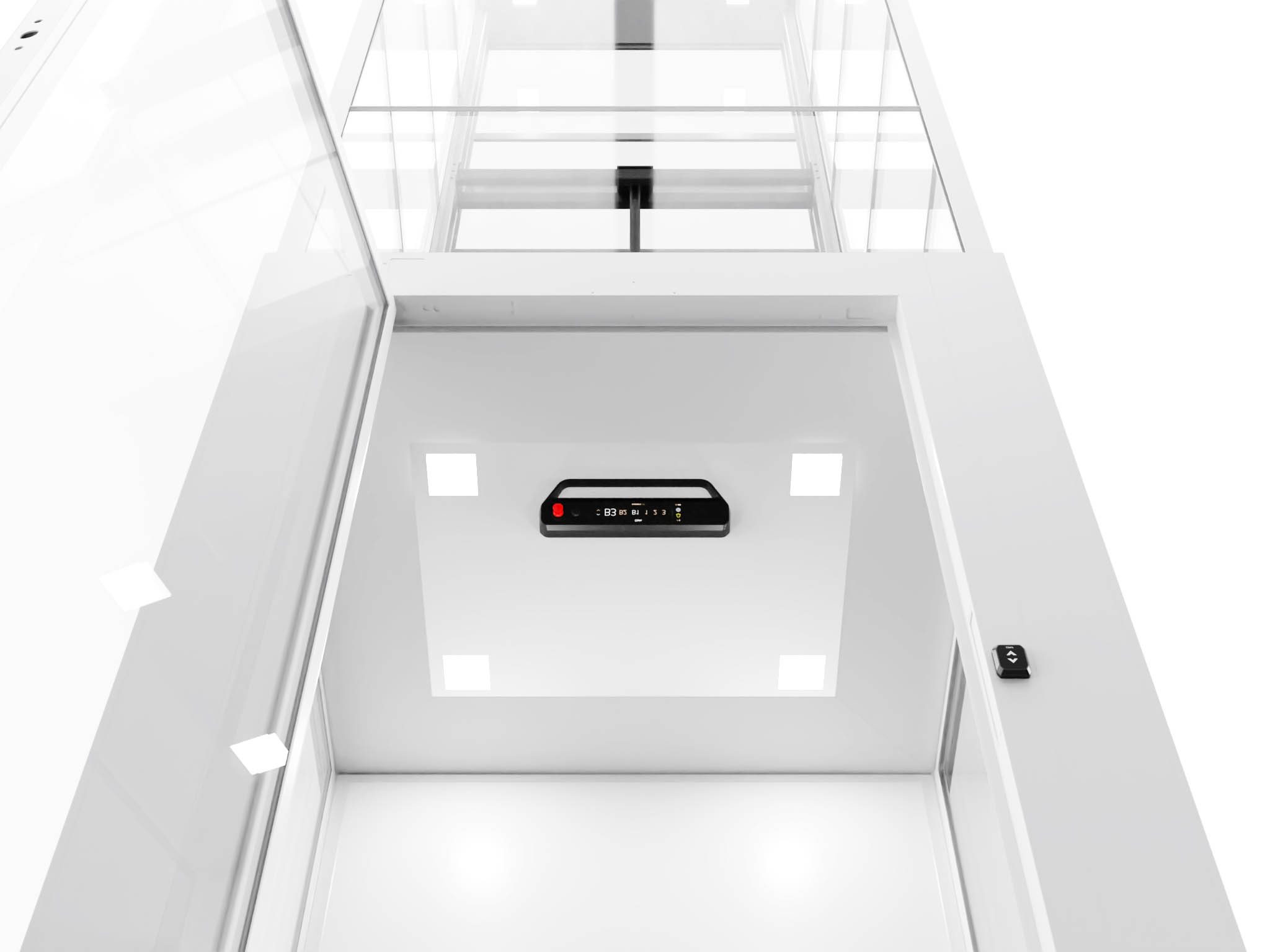

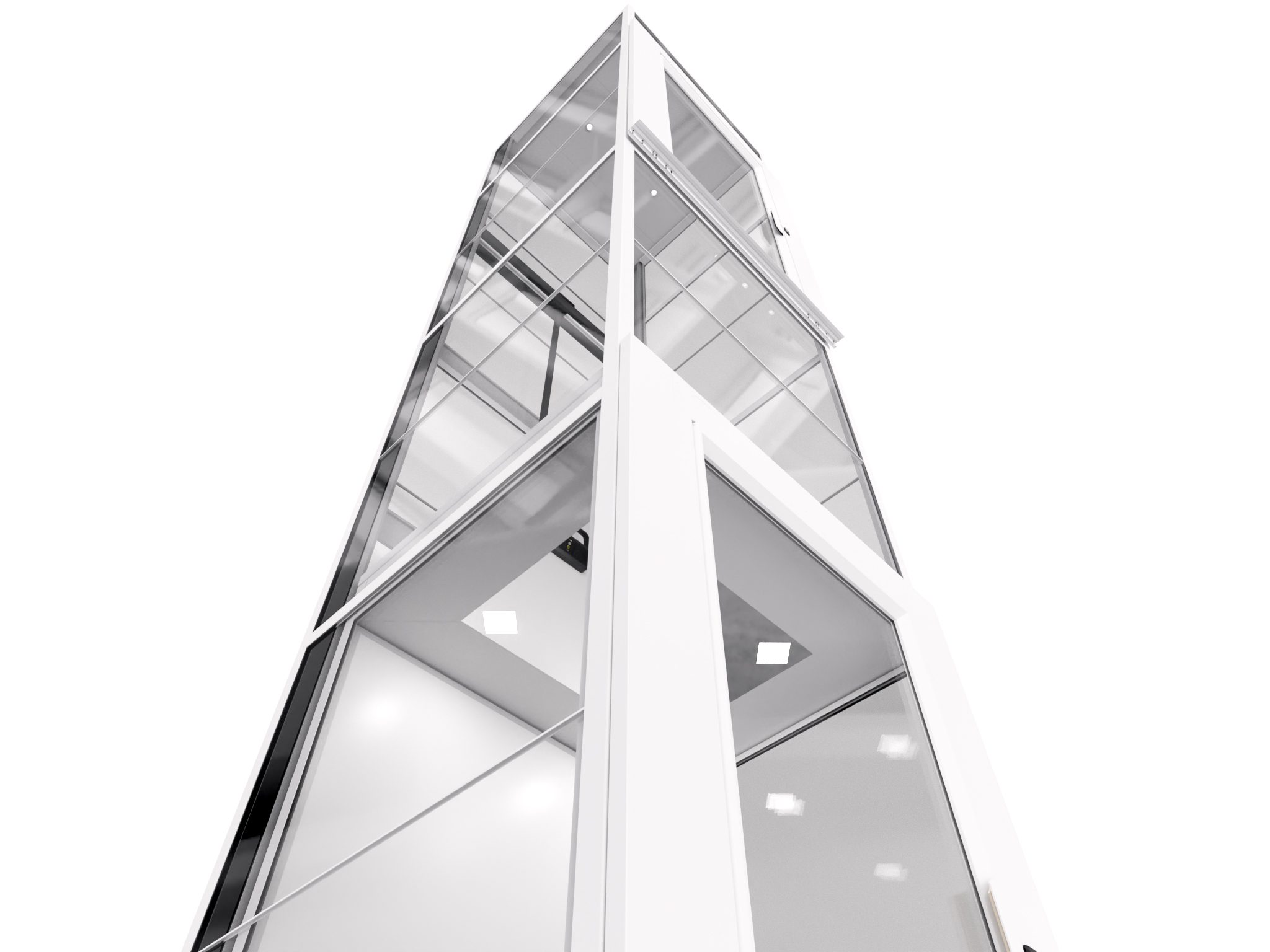

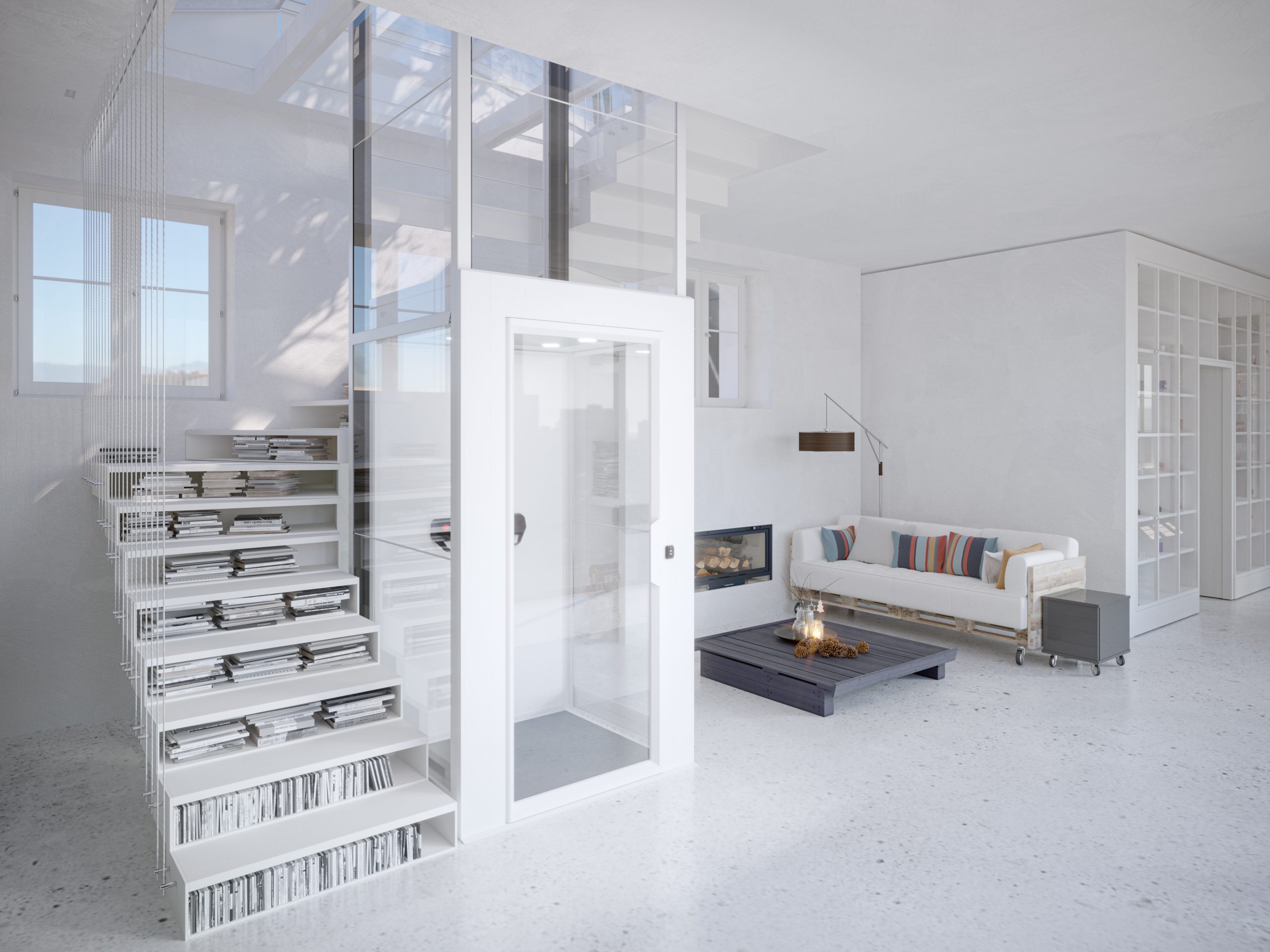

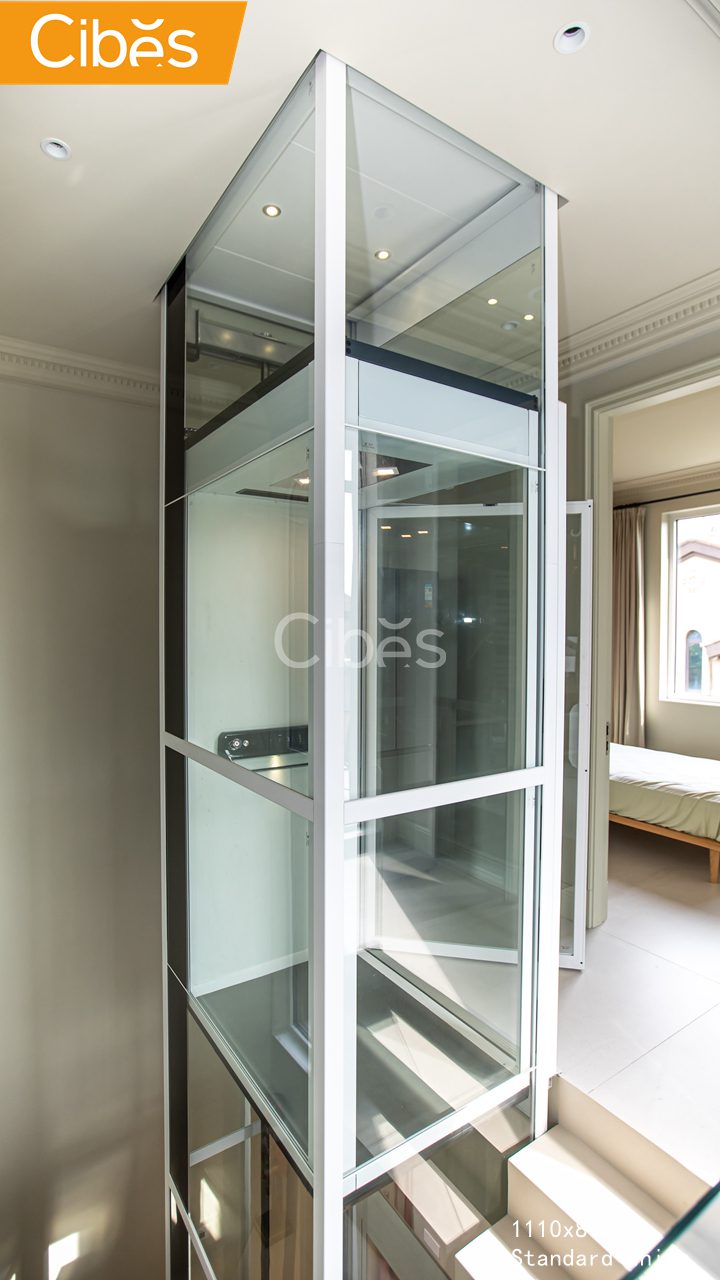

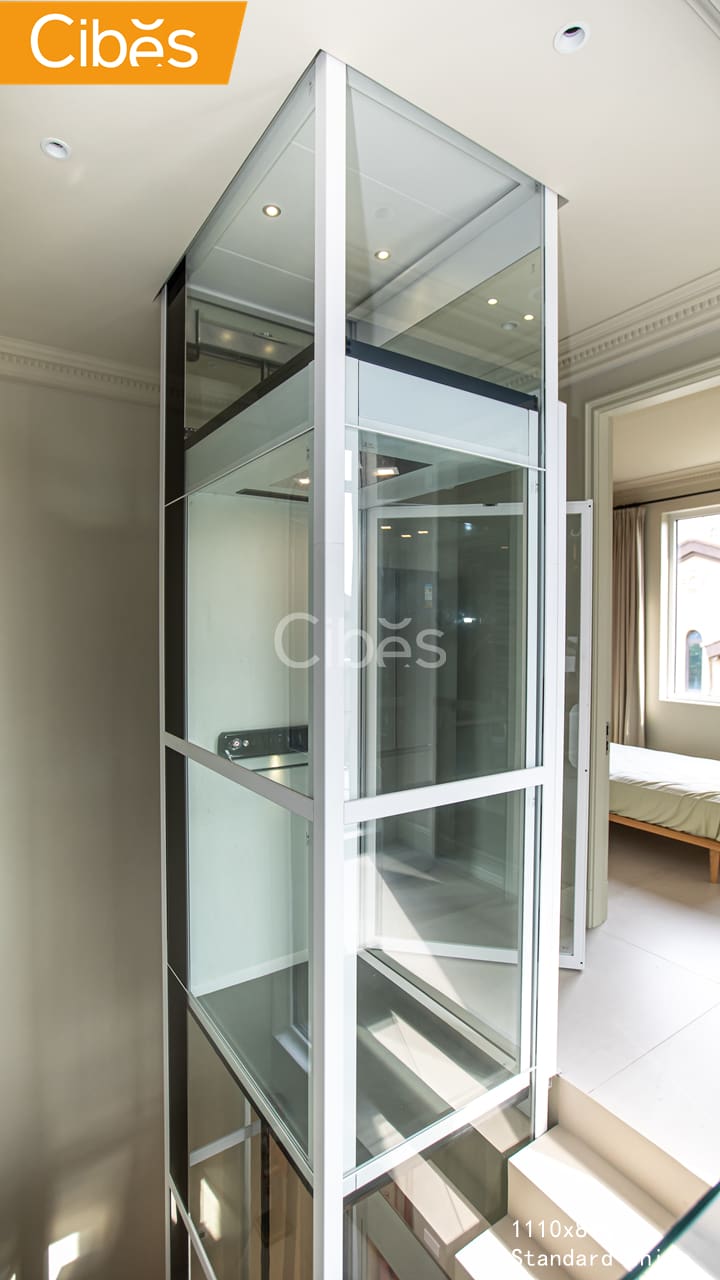

Panoramic Glass shaft lift with premium coating collection

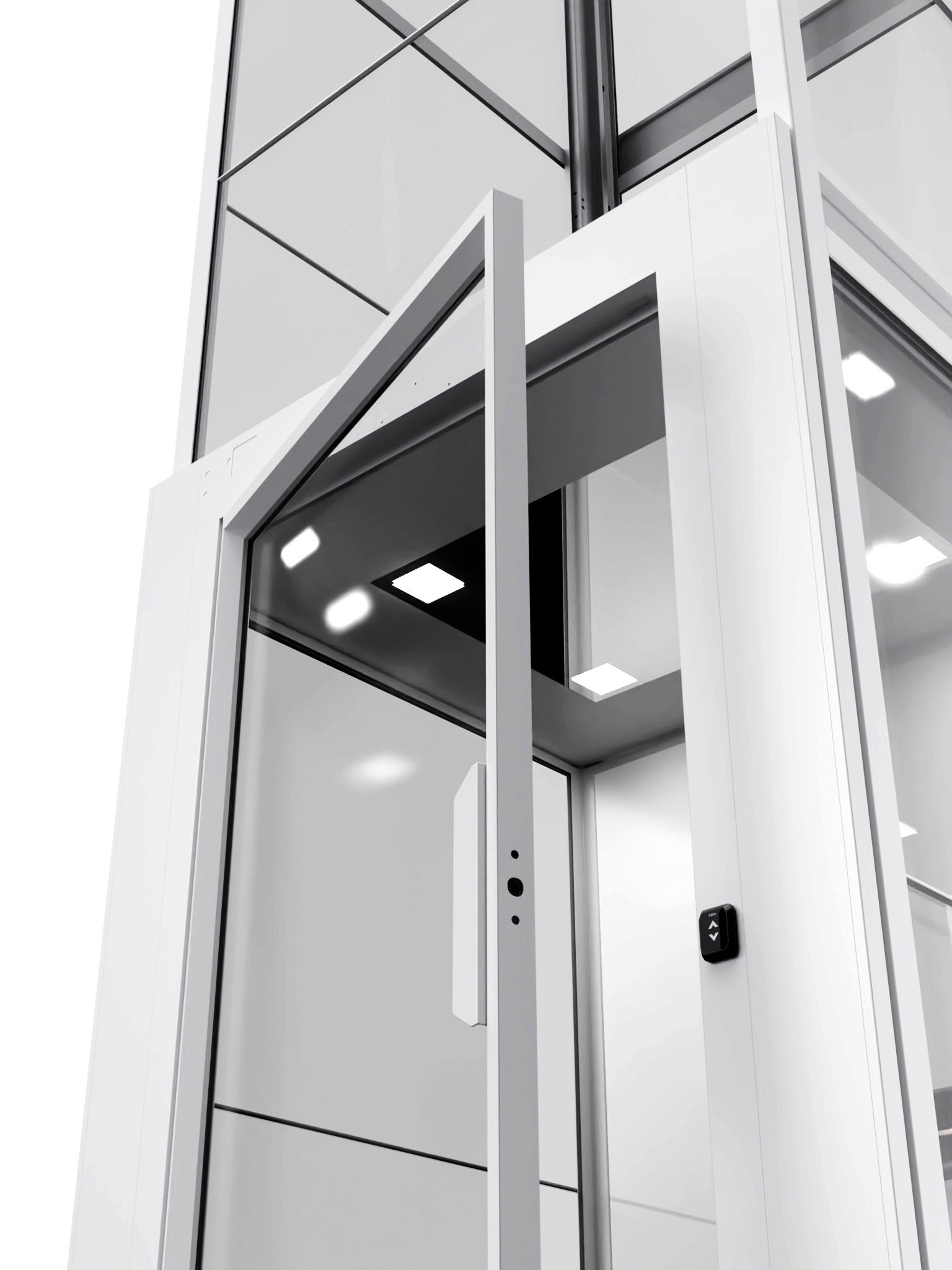

Equipped with a Gemini Swing Door for reliable and convenient use

```

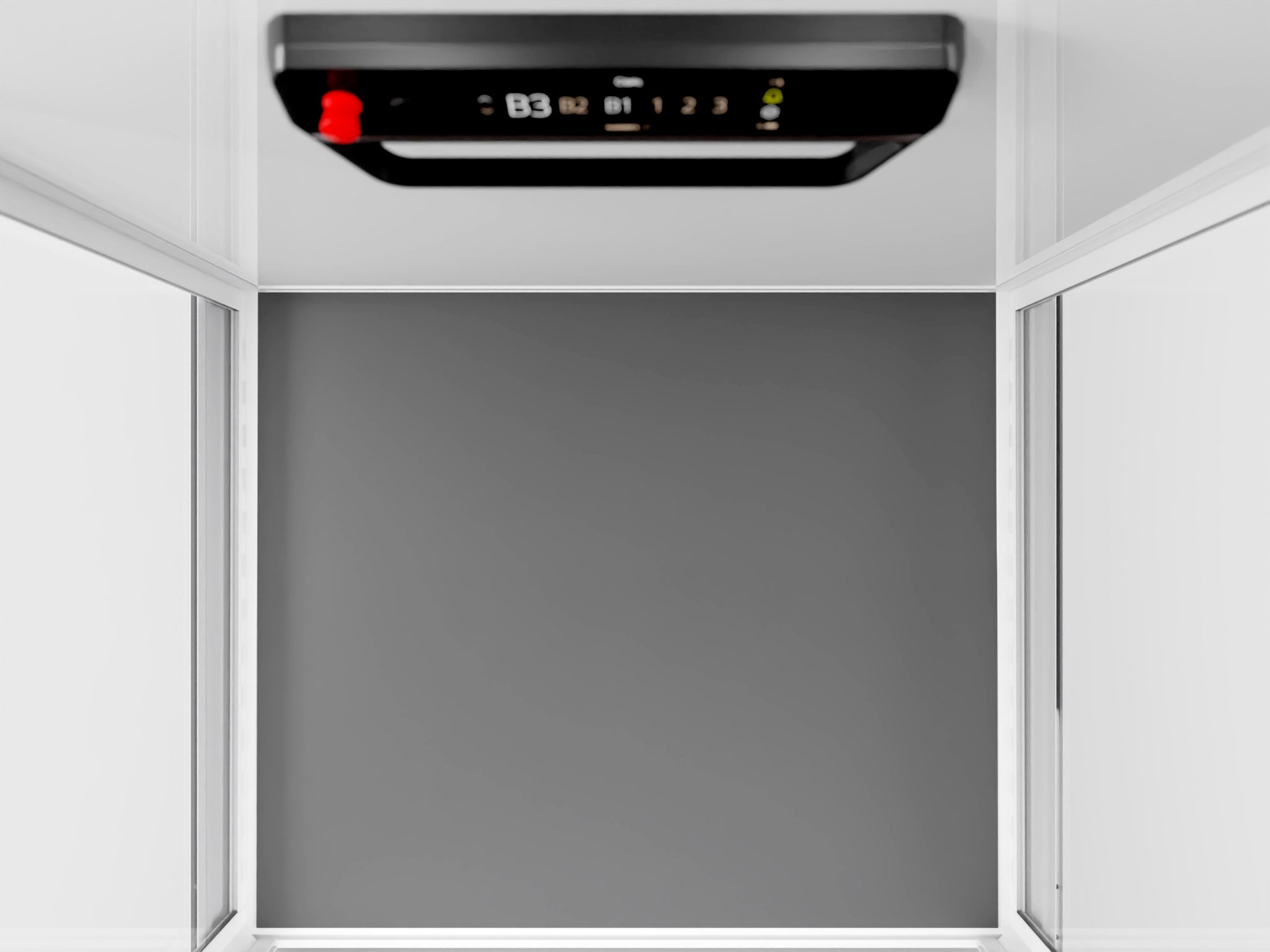

Anti- slip slate flooring from Forbo
```

Full Touch LCD Screen, Touch call button

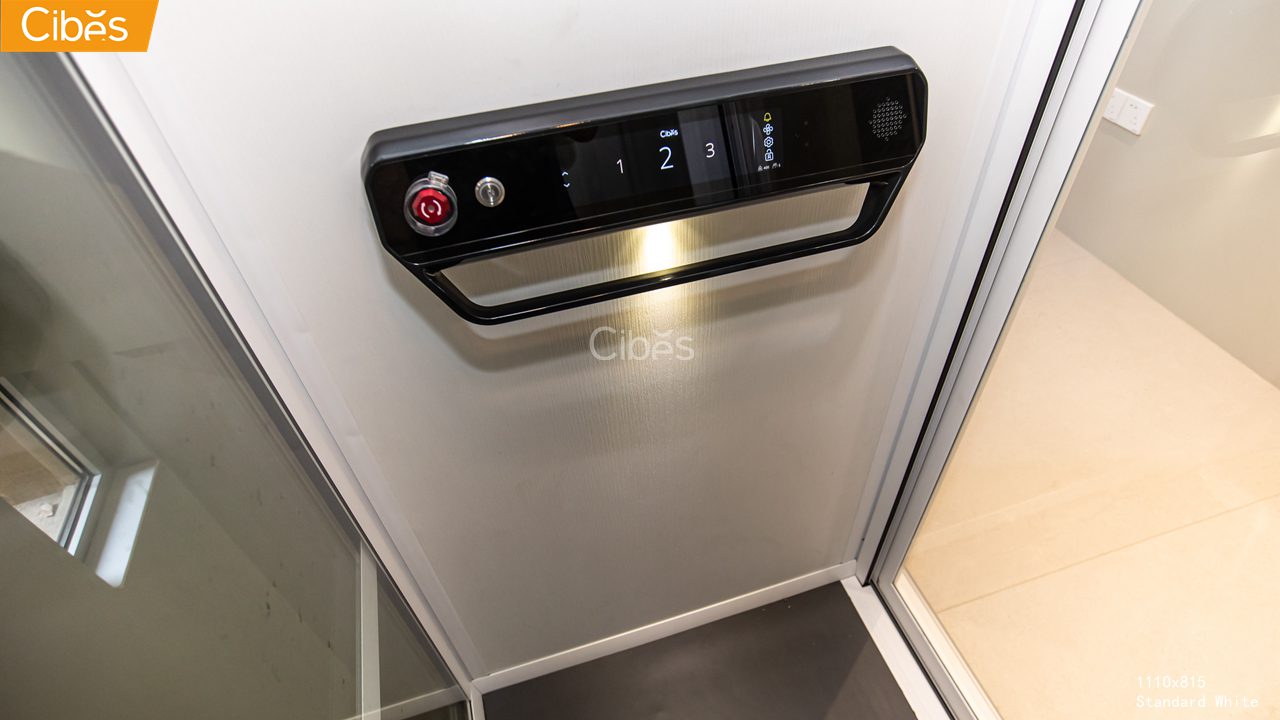

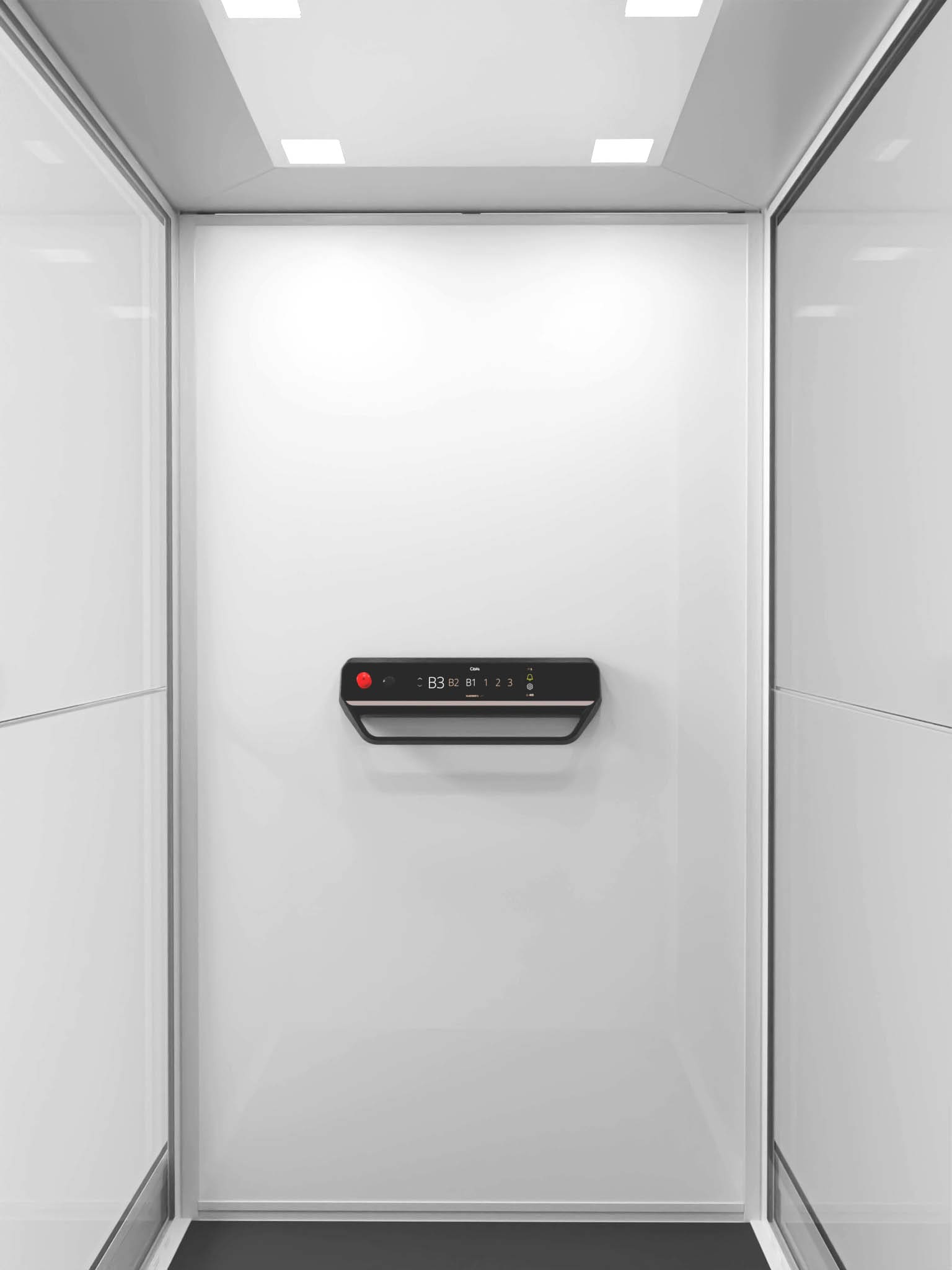

Smart control panel with multiple functions

Technical Specification

Specifications and model details

```
Installation location: Indoor/Outdoor
```

Load capacity: 350kg/ (2-4 people) and 450kg/ (5-7 people)

```
Maximum number of stops: 6
```

Maximum speed (m/s): 0.15 - 0.25 m/វិ

```
Travel height: 20m
```
```
Min head room: 2500mm
```
```
Pit depth: 0mm/100mm
```
```
Machine room:Integrated (MRL)
```

Popular Sizes

Dimension	Platform size (mm)	Cut out size (mm)
1	710x815	1060x960
2	910x1015	1260x1160
3	1010x1215	1360x1360
4	1110x1315	1460x1460
5	1110x1415	1460x1560

Download all sizes specifications

DESIGN

Pattern Color Flooring

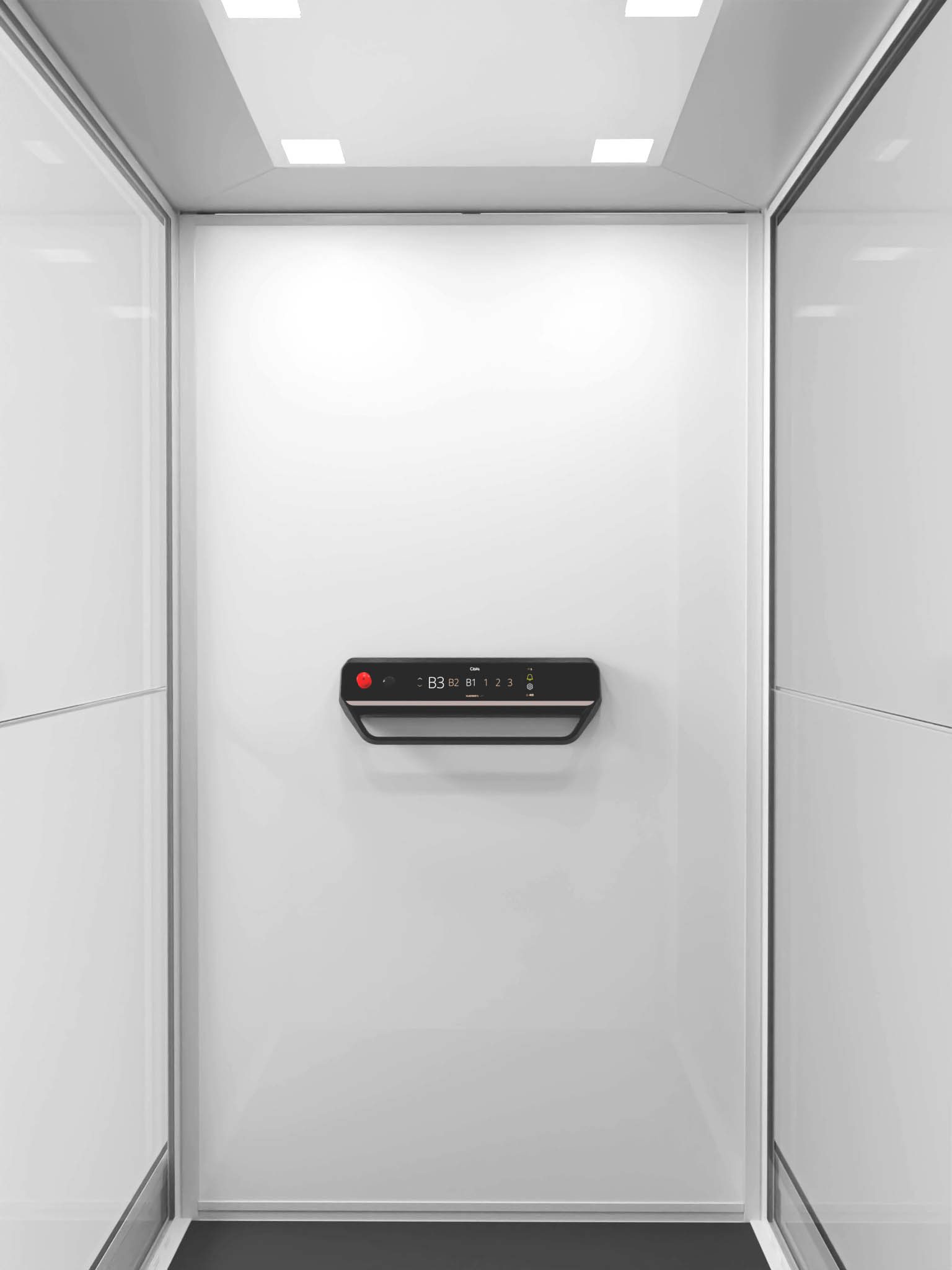

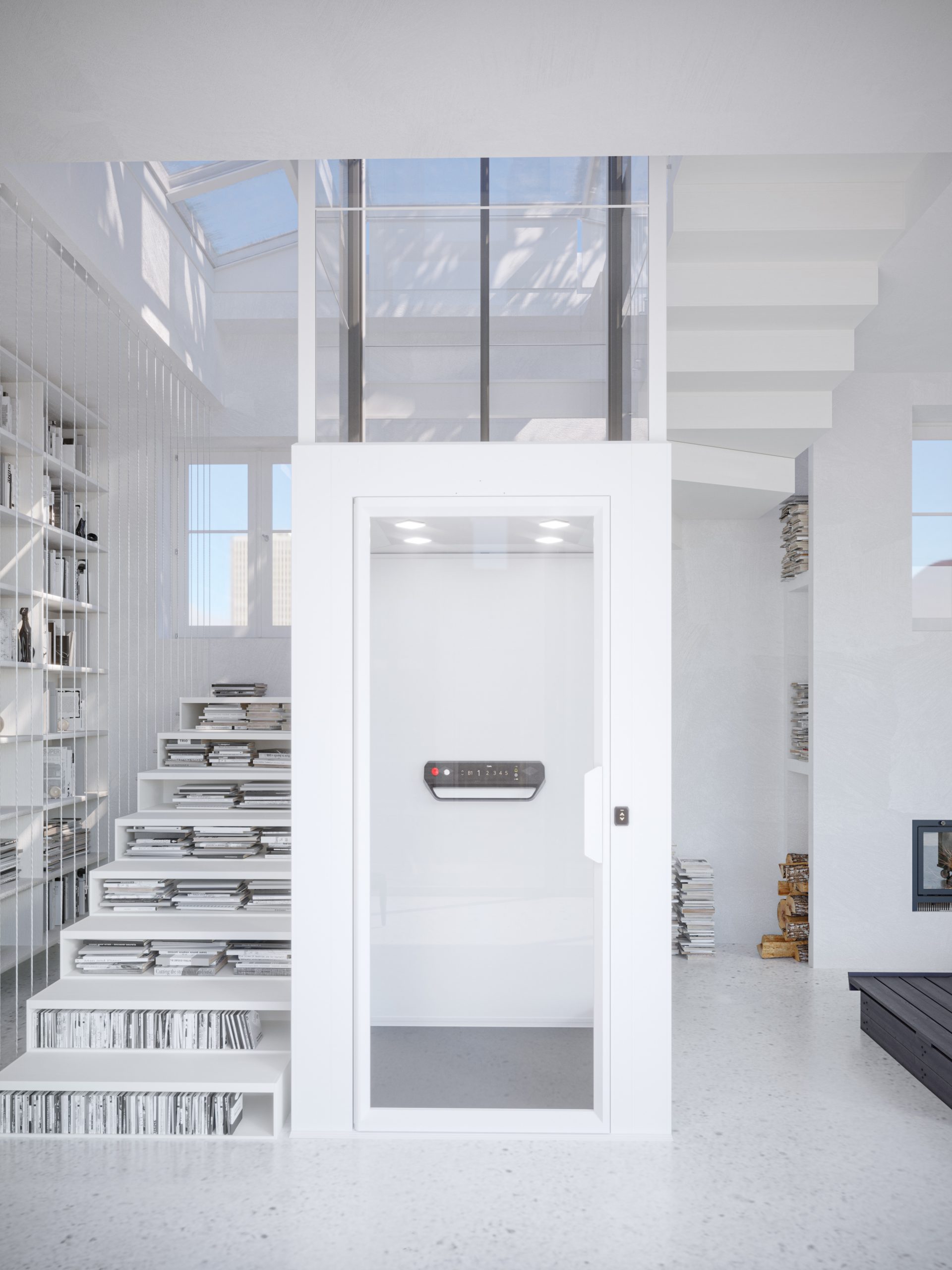

Elegant White Cabin

Premium White

Anti- slip flooring from Forbo

Download V90 Brochure
